Lightning Web Components

The Lightning Web Components framework is a UI framework for developing web apps for mobile and desktop devices. It’s a modern framework for building single-page applications with dynamic, responsive user interfaces for Lightning Platform apps. It uses JavaScript on the client-side and Apex on the server-side.

There are two Programming models to create Lightning Component:

    • Lightning Web Component
    • Aura Component

We will learn about Lightning Web Components in this blog.

Lightning Web Components(LWC) are custom pages that are created using custom HTML elements made  using HTML, CSS, and modern JavaScript. It is create  ECMAScript Version 7 and uses modern web standards which makes it perfect for modern rich UI implementation. Web standards have a set of functionalities of native browsers like Shadow DOM, Custom Elements, and many more.

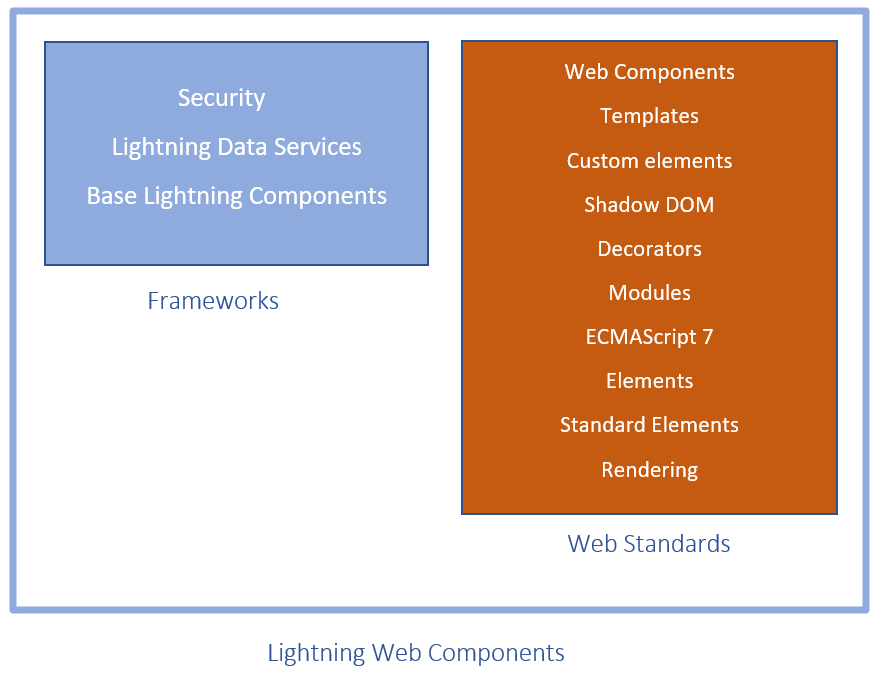

To achieve better component performance LWC uses fewer Frameworks and more web stacks because the framework is heavy.

Lighting Web Components

To create and develop LWC we need to set up salesforce DX. Salesforce DX is a set of tools and features that improve the efficiency of development during the application lifecycle. With this tool, development teams can easily work with command-line interfaces (CLIs) or integrated development environments (IDEs).
Unlike Aura Components, developing LWC components in the developer console is not possible. We need to write it locally and then push it to our org. For that, we can use tools like Visual Studio Code(VS Code), Salesforce Command Line Interface.
Install VS Code and set it up for Salesforce Development follow this Trailhead module.

LWC Component Structure

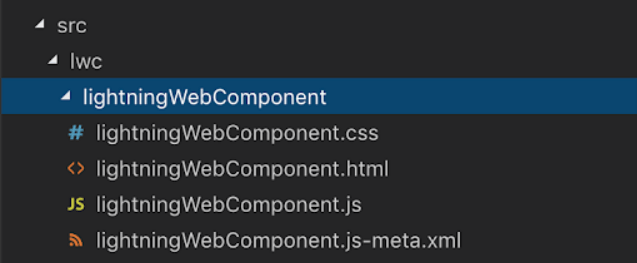

HTML, CSS, JS, XML file name should be similar to the component’s name, CSS file is optional.

Lighting Web Components

Let’s take a look at these files:

HTML

Lighting Web Components

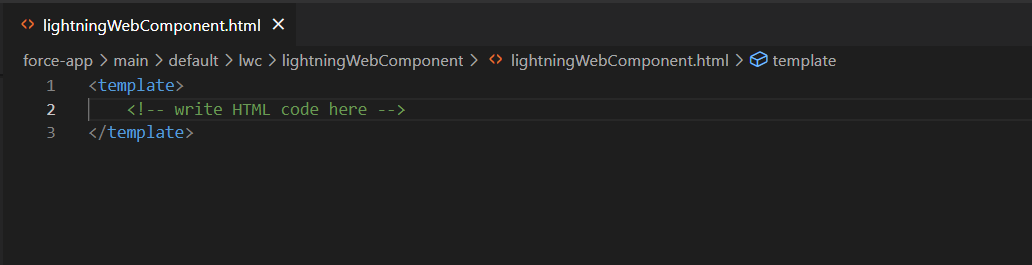

    • The HTML file has <template> as the root tag and all our HTML code will add inside the tag.

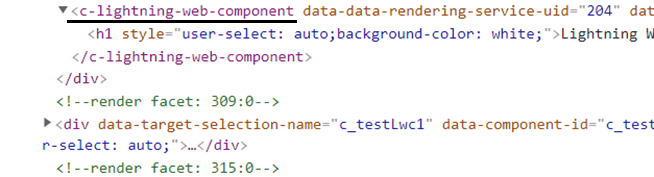

    • Templating system helps LWC to Manipulate the DOM. After the rendering process, the <template> tag is change with the name of the component i.e. <namespace-component-name>

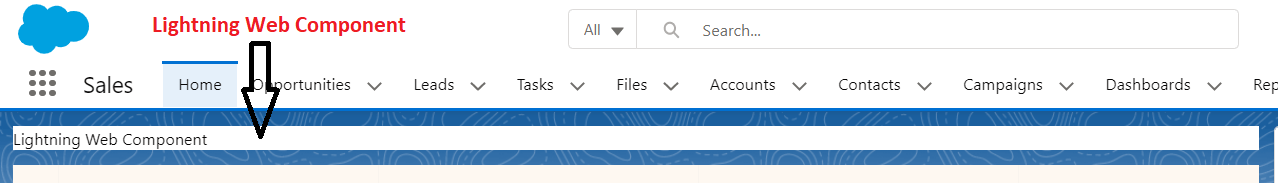

    • The above component with the name lightningWebComponent will render as shown below.

Lighting Web Components

Lighting Web Components

JavaScript

Lighting Web Components

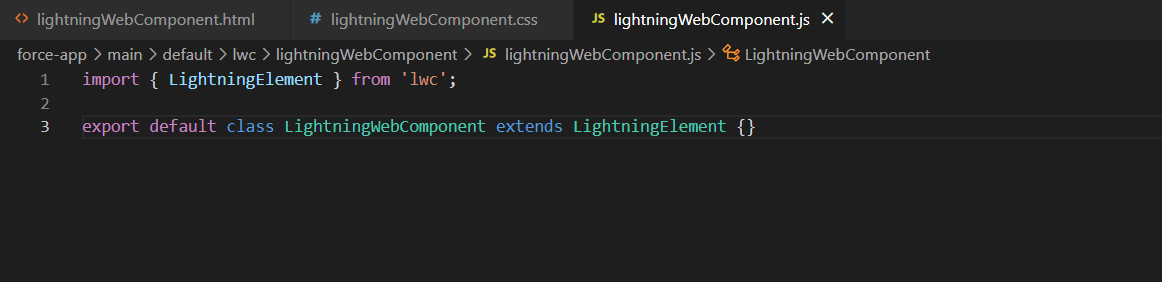

LightningElement is a base class for LWC, without extending the LightningElement class we can not create JavaScript Class and it allows us to use the life cycle hook’s methods to manage the component’s life cycle. It also supplies a JS controller for our component.
The export default keyword exports the class for other components to use.

XML File

Lighting Web Components Import

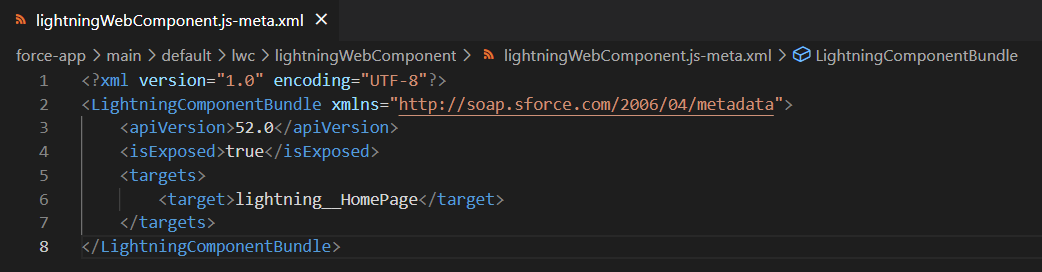

XML file is metadata of components, it includes metadata values for the component, including targets and the design configuration for the Lightning App Builder and Experience Builder. Filename must be <component’s Name>.js-meta.XML.
To allow the component to be used in Lightning App Builder or Experience Builder, set <isExposed> to true and define at least one <target> tag, which is a type of Lightning page.
To Know more about XML files refer to this source.

Decorators in Lightning Web Components

Decorators are part of ECMAScript, LWC has three decorators that add functionality to property or function. A property or function can be decorated with only one decorator at a time.

@api

It exposes public property. And public properties are reactive in nature means that when the value of property changes it re-renders the component.
To use @api decorator we need to import it from the lwc. Line number 4 in the image below shows how we can expose the message field as a public property.

Lighting Web Components API

We are using this public property ‘message’ as a value of the input tag in the HTML file.

Lighting Web Components

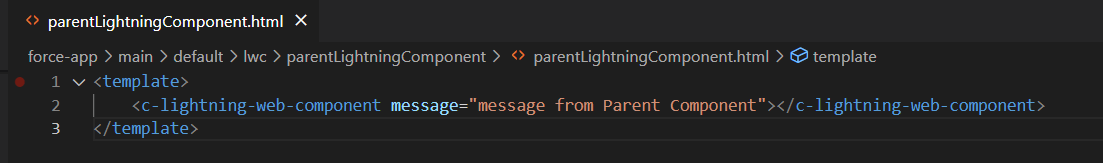

We can set the value of message public property from the Parent component like shown in the below image:
Web Components

Web Components

@track

The track is a decorator which makes variable reactive, meaning if the value of variable changes it triggers the component to rerender. It tells the framework to keep track of changes to the elements of Array or properties of an object.

Lighting Web Components Message

@wire

The wire is used to fetch and read the Salesforce Data. Wire service is used by LWC and when the fetching data process is done then the component re-renders.

For more information on Decorators refer to this link.

Click here to know more about Salesforce.
